Health Check

Each Typesense node is deployed as a Kubernetes Pod and includes three containers:

1. Typesense server – the actual Typesense node.
2. Metrics exporter – a sidecar based on typesense-prometheus-exporter that exposes Prometheus-style metrics for each node via a PodMonitor resource.
3. Cluster healthcheck – a sidecar based on typesense-healthcheck that aggregates the health of all nodes, offering a REST/JSON endpoint and a built-in web UI to monitor cluster and node status in real time.

The typesense-healthcheck sidecar aggregates and reports the health of all nodes in a Typesense cluster. It provides both Kubernetes-ready endpoints and a built-in web UI for real-time status visualization.

REST Endpoints

• /livez: Simple liveness probe; returns 200 OK.
• /readyz:Readiness probe; returns detailed JSON with overall cluster status and each node’s health. Returns 200 OK when the cluster is fully operation or 503 Service Unavailable when the cluster_health is calculated as false. Example:

{
    "cluster_status": "OK",
    "cluster_health": true,
    "nodes_health_check": {
        "c-kind-2-sts-0.c-kind-2-sts-svc": {
            "node_status": {
                "committed_index": 6813,
                "queued_writes": 0,
                "state": "FOLLOWER"
            },
            "node_health": {
                "ok": true
            }
        },
        "c-kind-2-sts-1.c-kind-2-sts-svc": {
            "node_status": {
                "committed_index": 6813,
                "queued_writes": 0,
                "state": "FOLLOWER"
            },
            "node_health": {
                "ok": true
            }
        },
        "c-kind-2-sts-2.c-kind-2-sts-svc": {
            "node_status": {
                "committed_index": 6813,
                "queued_writes": 0,
                "state": "FOLLOWER"
            },
            "node_health": {
                "ok": true
            }
        },
        "c-kind-2-sts-3.c-kind-2-sts-svc": {
            "node_status": {
                "committed_index": 6813,
                "queued_writes": 0,
                "state": "LEADER"
            },
            "node_health": {
                "ok": true
            }
        },
        "c-kind-2-sts-4.c-kind-2-sts-svc": {
            "node_status": {
                "committed_index": 6813,
                "queued_writes": 0,
                "state": "FOLLOWER"
            },
            "node_health": {
                "ok": true
            }
        },
        "c-kind-2-sts-5.c-kind-2-sts-svc": {
            "node_status": {
                "committed_index": 6813,
                "queued_writes": 0,
                "state": "FOLLOWER"
            },
            "node_health": {
                "ok": true
            }
        },
        "c-kind-2-sts-6.c-kind-2-sts-svc": {
            "node_status": {
                "committed_index": 6813,
                "queued_writes": 0,
                "state": "FOLLOWER"
            },
            "node_health": {
                "ok": true
            }
        }
    }
}

tip

You can configure external load balancers (e.g., AWS ALB or Open Telekom Cloud ELB) to probe the sidecar’s /readyz endpoint for continuous, real-time health checks of your cluster.

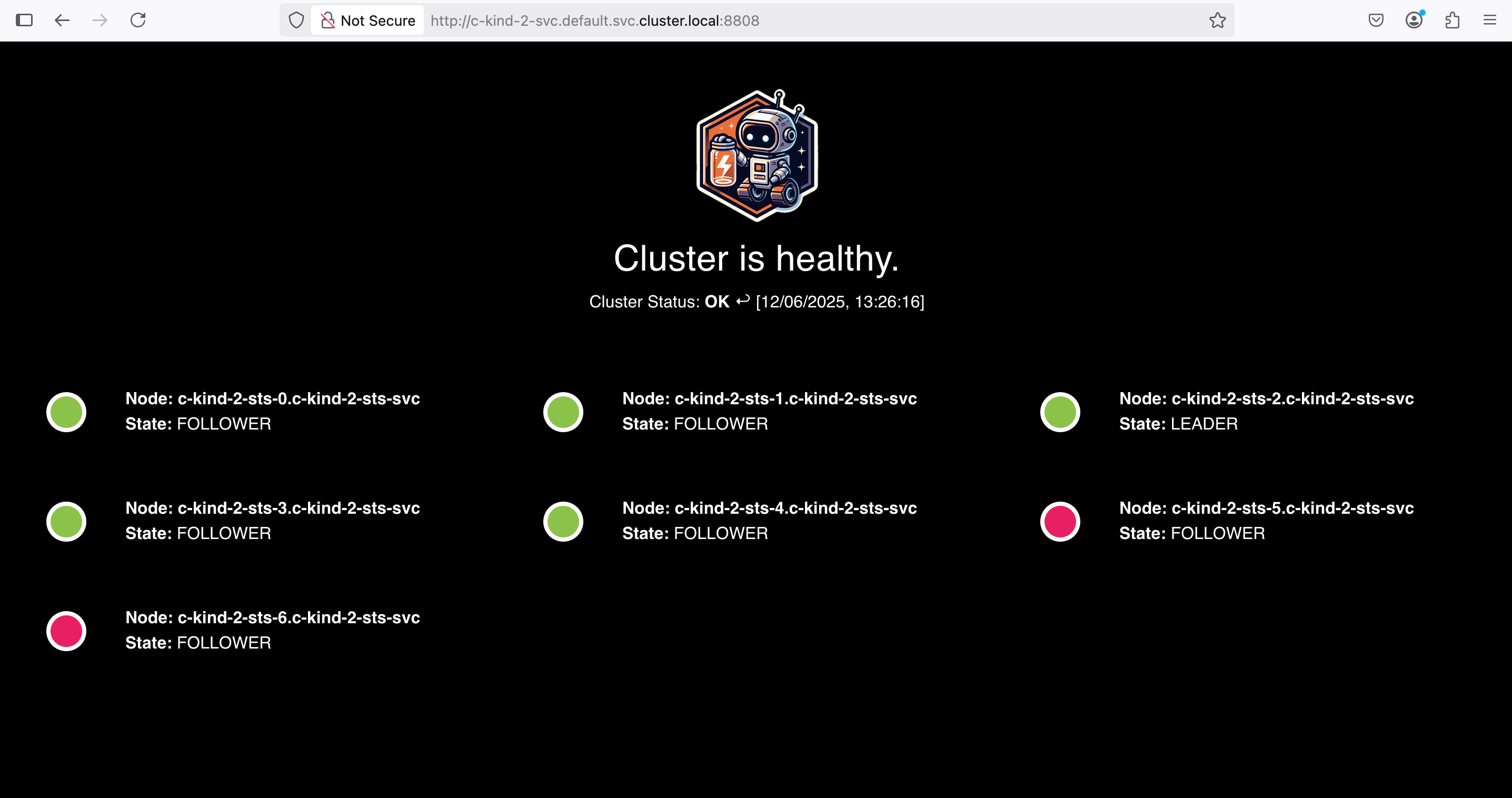

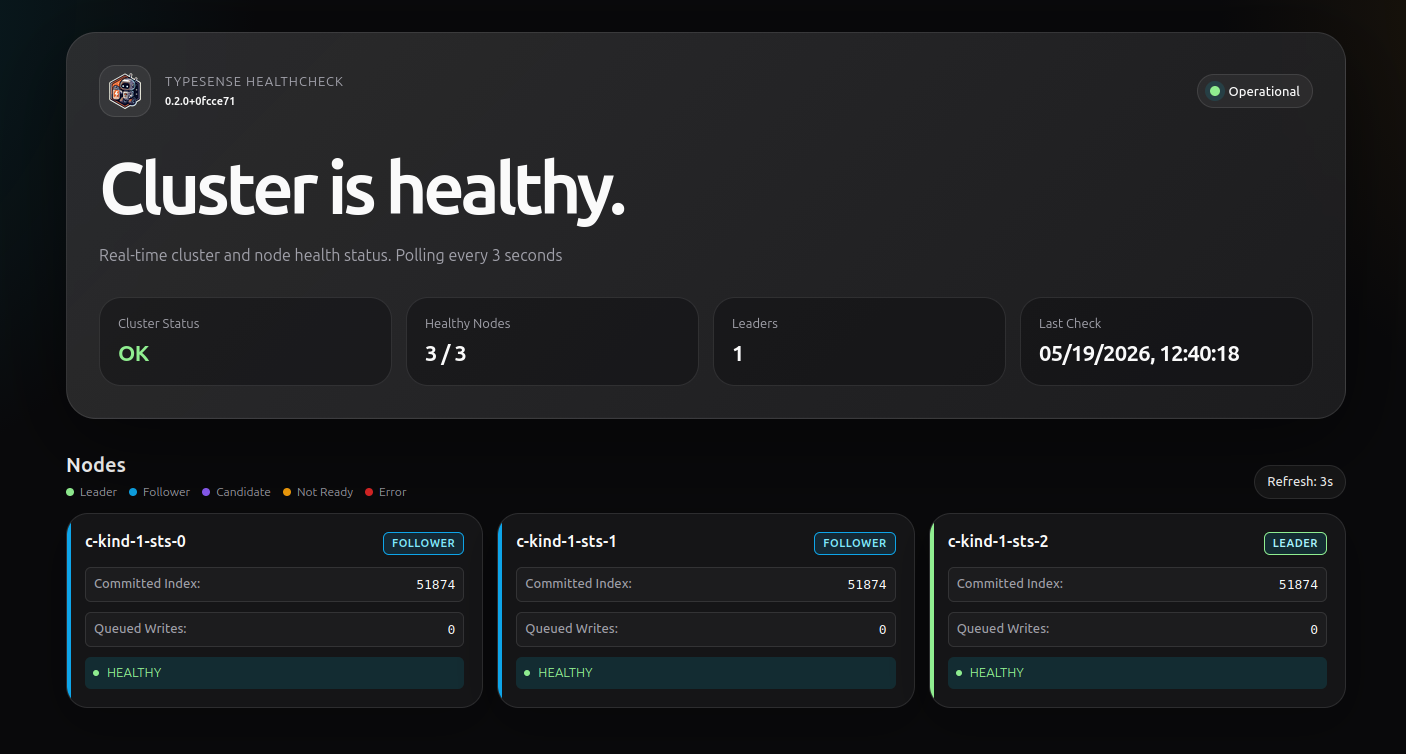

Web UI

The library ships with an interactive, single-page monitoring UI built on Vue.js and Vuetify. Its design and layout are inspired by the podinfo demo landing page. It provides:

• Instant overview: a clean dashboard that lists every node in your Typesense StatefulSet, showing key metrics (leader/follower/candidate state, committed index, queued writes) at a glance.
• Auto-refresh: the UI polls the /readyz endpoint every 3 seconds, ensuring you always see up-to-date cluster health without manual reloads.
• Color-coded status: each node’s health is highlighted with color-blind-friendly colors (light-green for healthy, pink for unhealthy), so you can spot issues immediately.
• Responsive layout: cards adapt across desktop and mobile, with Vuetify’s grid system ensuring your cluster view stays usable on any screen size.
• Lightweight and self-contained: extremely small memory footprint; just point your browser at http://POD_IP_ADDRESS_OR_FQDN:HEALTHCHECK_PORT/ and dive right in.

Configuration

Variable	Type	Default	Required	Description
LOG_LEVEL	int	0	No	Log level
CLUSTER_NAMESPACE	string	default	No	K8s namespace where your Typesense StatefulSet lives
TYPESENSE_API_KEY	string	—	Yes	API key for accessing each Typesense node
TYPESENSE_PROTOCOL	string	http	No	Protocol for Typesense API (http or https)
TYPESENSE_API_PORT	uint	8108	No	Port for Typesense REST/API Port
TYPESENSE_PEERING_PORT	uint	8107	No	Port for Typesense Raft Peering Port
HEALTHCHECK_PORT	uint	8808	No	Port on which this healthcheck sidecar listens
TYPESENSE_NODES	string	/usr/share/typesense/nodes	No	Path for Typesense Raft nodes list

note

All these values are automatically configured by the operator.

While this library is designed to run as a sidecar alongside your Typesense nodes provisioned by TyKO, you can point it at any cluster by mounting a file of node addresses and setting TYPESENSE_NODES accordingly.
